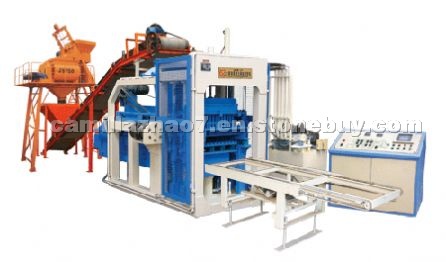

Concrete Block/brick Making Machine (YLM60)

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Natural Stone

• sCode:

  STPR1441996

• Place of Origin:

  China
• Technical Data
  Weight of the main body (tons)10.2
  Size of the outlook (mm)3800*2400*3100
  Size of the pallet (mm)810*520*25
  Moulding period (seconds)10-15
  Area of molding(square mm)800*500
  Height of molding50-240
  Total power (KW)41.5
  Production Capacity
  ProductsSpecifications(mm)Bricks/mould Bricks/day
  Standard Brick240*115*532662,400
  Block390*190*19049,600
  Block390*240*19037,200
  Holes Brick240*115*901228,800

  Technical Characteristic:
  1.The raw material can be stone powder, sand, fly ash, construction waste, and the like, which can lower producing cost greatly.
  2.short molding period within 10-15s
  3.adopt hydraulic transmission
  4.can produce lots of cement products to satisfy different needs in the market, such as hollow block, standard brick, roadside brick, bricks for the square, bricks for the yard, brick for the blind, to name a few.
